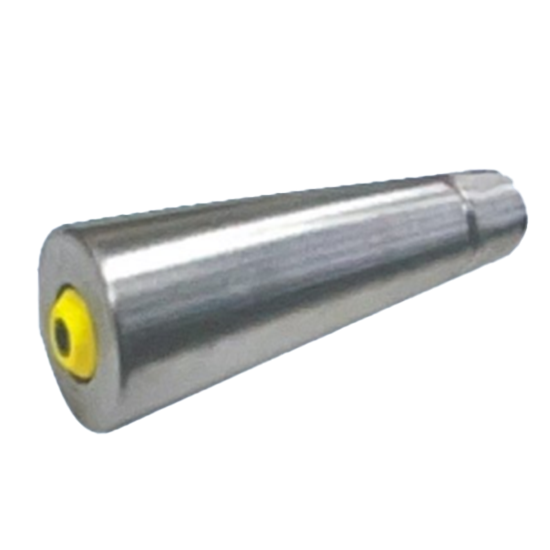

Groove Tapered Sleeve Roller

  1. The conical groove roller is divided into two types: single groove and double groove.
  2. The diameter of the small end of the conical roller should be greater than or equal to 38mm.
  3. The taper can be customised according to customer requirements.
  4. The size of the groove and the distance between the grooves of the roller can be customised according to the customer’s requirements.
  5. The surface of the conical roller can be covered with rubber, rubber, knurling.
  6. If there are other special requirements, please consult our salesman for details.

Description

Product introdction

  1. The conical groove roller is divided into two types: single groove and double groove.
  2. The diameter of the small end of the conical roller should be greater than or equal to 38mm.
  3. The taper can be customised according to customer requirements.
  4. The size of the groove and the distance between the grooves of the roller can be customised according to the customer’s requirements.
  5. The surface of the conical roller can be covered with rubber, rubber, knurling.
  6. If there are other special requirements, please consult our salesman for details.



Product features

Pressure groove conical roller has the characteristics and advantages of both pressure groove roller and conical roller. Pressure groove roller has high mechanical hardness, can rotate at high speed for a long time under high load, has high coefficient of friction resistance, and has strong anti-wear ability. It is suitable for the high load bearing characteristics of conical drums.

At the same time, the pressure groove roller also has the characteristics of corrosion resistance, in the transport of production materials containing acids, alkalis and salts, the mechanical properties of the pressure groove roller will not be affected by corrosion. This can also increase the scope of application of pressure groove conical roller, improve its cost-effective.

Product parameter: (mm)

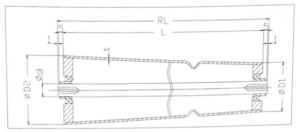

single groove

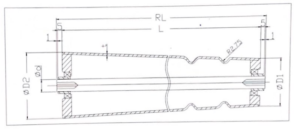

double groove

Cylinder diameter(bigger side)Cylinder diameter(small side)Cylinder thicknessshaft diameterlengthmaterial (that sth is made of)Surface Finishing
Customer defined381.5/2.012100-1500Carbon steel镀铬
Customer defined381.5/2.015100-1500stainless steel镀锌
Customer defined382.0/2.520100-1500 包胶



How to choose conveyor rollers?

Conveyor rollers are generally applicable to many industries, but the requirements of different industries for the body material are closely related to the roller wall thickness and diameter. First of all, the body requirements, heavy duty operation requirements, we have to consider the thickness of the body plate, heavy duty to use channel steel or carbon steel or thick 304 stainless steel. Secondly, the wall thickness of the drum is very important and needs to be obtained under loads that exceed the budget.

Motor selection: the motor is the power source. If the motor size does not match, the conveyor roller will not be able to drive the entire roller conveyor line.

Safety and security: safety is the most important thing in everyone’s mind, so the hidden danger of the conveyor roller should be sealed.
